Trango45 VLAN support

Originally from ticket #6057.

Hi Hitesh,

Thanks for your info.
But I solved using following way.

- Connect a PC to a port of a switch configured 'switchport access vlan 2'.
- Connect Trango unit on a trunk port.

Then I was able to do telnet from my PC.
On the TranfoLink45 user manual, the explanation about reset button and
vlan is not clear.

I wanted to check whether Trango45 wireless bridge is transparent for
tagged vlan frame ( Checked if it passes through tagged frame).

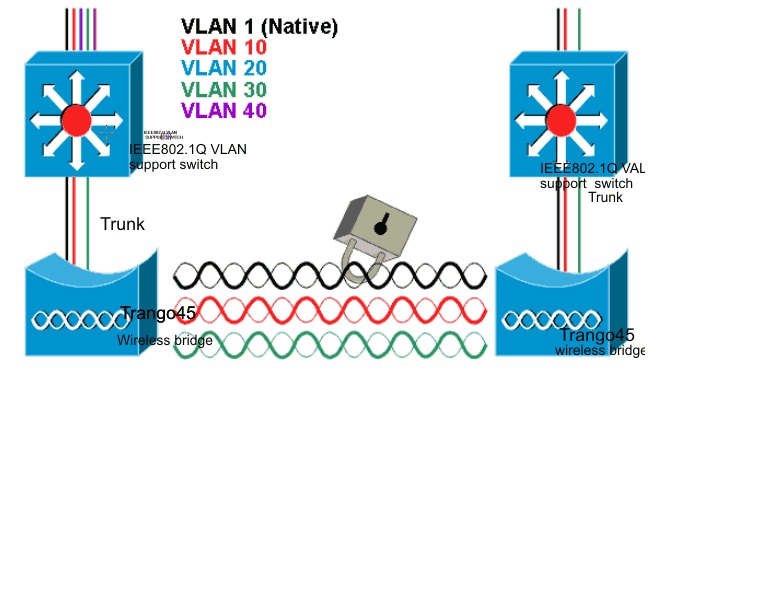

On the attached diagram, I have connected a PC to a switch port with 'access
vlan 2' and did Trango45 unit to a trunk port of the switch.
I did the same thing for the other peer. On the Thrango45, there is 'no
vlan' configuration.
Then I have checked connectivity of the two PCs. It works.
As for Cisco aironet 2.4GHz wireless bridge, it requires a configuration on
each VLAN, there fore I thought I need a configuration on Trango45 as well.
And STP mechanism works on both switch.

Regards,

Makoto N
LTS / lesamoa.net
Apia Samoa
